Descrizione
SPECS
Effects
| EFFECTS: | 16 types |
| CONCURRENT EFFECTS: | 5 |
| SAMPLING FREQUENCY: | 44.1 kHz |
| A/D CONVERSION: | 24-bit 128× oversampling |
| D/A CONVERSION: | 24-bit 128× oversampling |
| SIGNAL PROCESSING: | 32-bit |
| FREQUENCY RESPONSE: | 20 Hz–20 kHz (+1 dB/−3 dB) (10 kΩ load) |
INPUTS
| MIC IN: | XLR jack |
| INPUT GAIN: | +3 – +40 dB |
| MAXIMUM INPUT LEVEL: | +4 dBu |
| INPUT IMPEDANCE: | 3 kΩ or higher (1 kHz) |
| PHANTOM POWER: | +48 V |
| AUX IN: | Stereo mini jack |
| RATED INPUT LEVEL: | −10 dBu |
| INPUT IMPEDANCE (LINE): | 22 kΩ |
OUTPUTS
| L/R OUT: | Unbalanced TS jacks |
| MAXIMUM OUTPUT LEVEL: | +6 dBu |
| OUTPUT IMPEDANCE: | 100 Ω |
| PHONES: | Stereo mini jack |
| MAXIMUM OUTPUT LEVEL: | 20 mW + 20 mW (into 32 Ω load) |
| EQUIVALENT INPUT NOISE (WHEN PHANTOM POWER OFF): | –125 dBu or less (A-weighted, 150 Ω input, +40 dB input gain) |
| NOISE FLOOR (RESIDUAL NOISE): | –75 dBu |
| CONTROL INPUT: | FS01/FP02M input |
POWER
| POWER: | AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16) 4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries) |
| USB: CONNECTOR: | Micro USB |
| AUDIO INTERFACE OPERATION: | 2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit |
| Power can also be supplied through the USB port. | |
| When using a cable designed only for power, other USB functions cannot be used. |
WEIGHTS AND DIMENSIONS
| EXTERNAL DIMENSIONS: | 150 mm (D) × 190 mm (W) × 50 mm (H) |
| WEIGHT: | 0.59 kg (excluding batteries) |

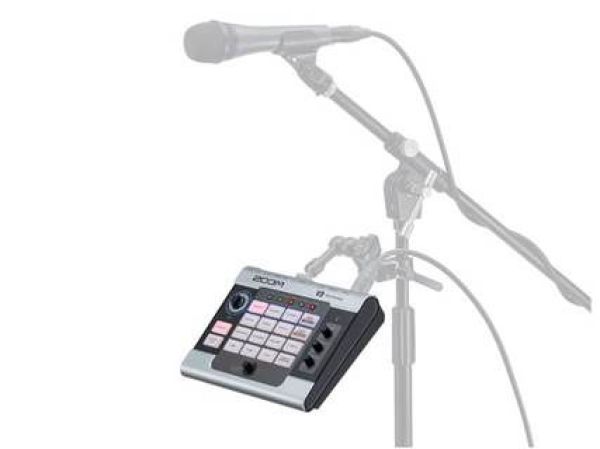

In live, in streaming, registrando, on in collegmamento online, il V3 è ricco di effetti, opzioni di armonizzazione, correzione del tono e altro ancora. Il timbro della tua voce migliorerà in modo straordinario.
- V3 offers 16 creative voice effects plus compression, reverb, delay and enhance
- Add up to two voices to create 3-part harmonies across a full octave
- Independent compression, reverb and delay controls
- Built-in Enhancer for increased sound clarity
- 48V phantom power for condenser microphones
- USB 2.0 audio interface capable of recording up to 16/24/32-bit, 44.1 kHz
- Line outputs for connecting to PA systems or mixing consoles
- Headphone output with dedicated volume control
- Auxiliary input
- Operates for 3.5 hours on 4 AA batteries or with Zoom AD-16 AC adapter
